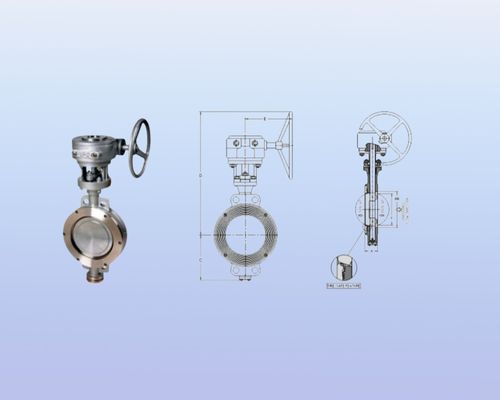

DOUBLE - ECCENTRIC BUTTERFLY VALVE
Double Eccentric Butterfly Valve Manufacturers & Suppliers
OMPONENTS | MATERIALS |
BODY | WCB / CF8 / CF8M |
DISC | CA15 / CF8 / CF8M |
SEAT RETAINER | WCB / CF8 / CF8M |
STEM | 410 / 304 / 316 |
STEM BEARING | 304 / 304 / 316 |
METAL SEAT | 304 / 304 / 316 |
SEAT | PTFE/GFT |
BODY SEAL | GRAPHITE |
PACKING | GRAPHITE |
TESTING STANDARD | DESIGN STANDARD | TEST PRESSURE Kg/cm | #150 | #300 |
API 598/ BS EN 12266-Part 1, 2 | API 609/BS EN 593 | HYDRO SHELL | 31 | 79 |
SEAT | 22 | 58 | ||
|
| AIR SEAT | 7 | 7 |
- OTHER OPTIONALS:
- Other MOC as per customer requirement.
- Locking arrangement.
- Extended stem.
- Extended bonnet.
- Other flange-drillings, subject to confirmation.
- All Dimensions are in mm.
- Due to continuous development we reserve the right to change specifications without notice.
High-Performance Double Eccentric Butterfly Valves for Reliable Flow Control
We are leading double eccentric butterfly valve manufacturers and suppliers, offering advanced valves designed for tight shut-off and reduced seat wear. Double eccentric butterfly valves feature an offset disc and shaft design that minimizes friction during operation, ensuring longer service life and low operating torque. Manufactured using premium cast iron, carbon steel, stainless steel, and alloy steel, our valves comply with international standards such as API, ANSI, ASME, and ISO.
